Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation

Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation

Nom De Marque: Flyon Sports
Numéro De Modèle: diviser le rideau
Nombre De Pièces: 50 m²
Prix: 46-100 dollars per SQM
Conditions De Paiement: T/T
Capacité à Fournir: > = 50000 m² / mois
Informations détaillées
Lieu d'origine:
Chine
Certification:
SGS/GB-8624
Matériel:
PVC / Tissu à haute résistance
Couleur:
Personnalisable
Modèle:
Personnalisable
Performance environnementale:
GB-18586
Respirabilité:
> 45%
Résistance à la déchirure:
GB / T 3917.3-2009
Détails d'emballage:
Boîtes en bois
Capacité d'approvisionnement:
> = 50000 m² / mois
Mettre en évidence:

Customizable Color Dividing Curtains

,

High Strength Fabric Divider Curtain

,

Electric Control System Partition Curtain

Description de produit
Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation
Our dividing curtain systems provide the perfect solution for efficiently separating spaces in industrial and commercial facilities. Designed for maximum performance and reliability, these curtains offer superior functionality while maintaining visual appeal.
Single Curtain System Specifications
Product Name Divider Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Options
Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation 0 Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation 1
Model Variations
Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation 2
Installation Safety Requirements
  • A safety gap of at least 50 cm should be reserved between this partition curtain system and adjacent partitions or walls
  • A safety clearance of at least 15 cm should be maintained on the side without motor drive system
  • At least 5 cm ground clearance must be reserved between the bottom of the partition curtain and the ground
Electric and Control System
  • High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer
  • Integrated up-and-down position brake limiter and push-button limit switch
  • Automatic reset and thermal overload protection system built into the middle winding drum
  • Ensures stable and reliable operation in all conditions
Product Advantages
  • Double curtains constructed from high-quality PVC for superior sound absorption
  • Partial mesh design allows natural light transmission while maintaining separation
  • Complete system includes all required materials, parts, and aluminum truss load-bearing structure
  • Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
  • Simple to operate with multiple customization options available

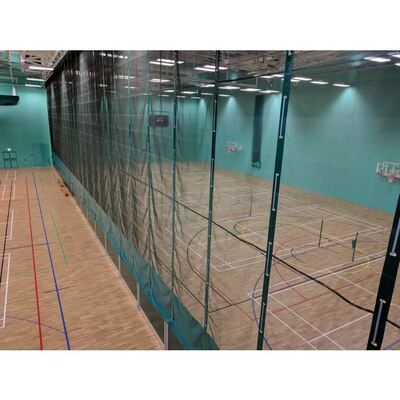

Project Showcase
Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation 3 Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation 4 Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation 5 Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation 6
